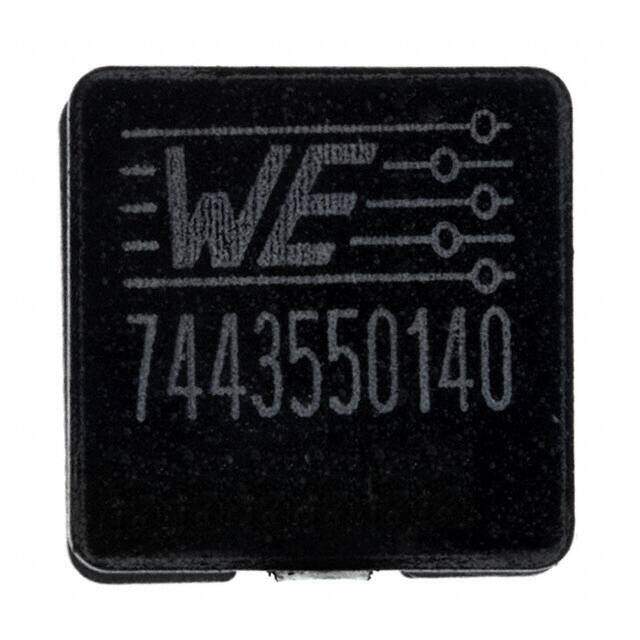

7443550140
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 1.4muH
PDF
/
Buying Options
Total Price: USD $3.06
Unit Price: USD $3.0624
≥1 USD $3.0624
≥10 USD $3.0008
≥100 USD $2.772
≥500 USD $2.6576
≥1000 USD $2.4816
Inventory: 1175
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12.8mm
Length 13mm
Height Seated (Max) 0.197 5.00mm
Height 4.7mm
Technical
Series Resistance 2.4Ohm
RMS Current (Irms) 22A
Inductance Tolerance 20%
Current - Saturation 26A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 60MHz
Max DC Current 22A
DC Resistance (DCR) 2.4mOhm
Test Frequency 100kHz
Inductance 1.4μH
Current Rating 22A
Depth 12.8mm
Shielding Shielded
Current Rating (Amps) 22A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Resistance 2.4mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C
Physical
Supplier Device Package 1350
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
