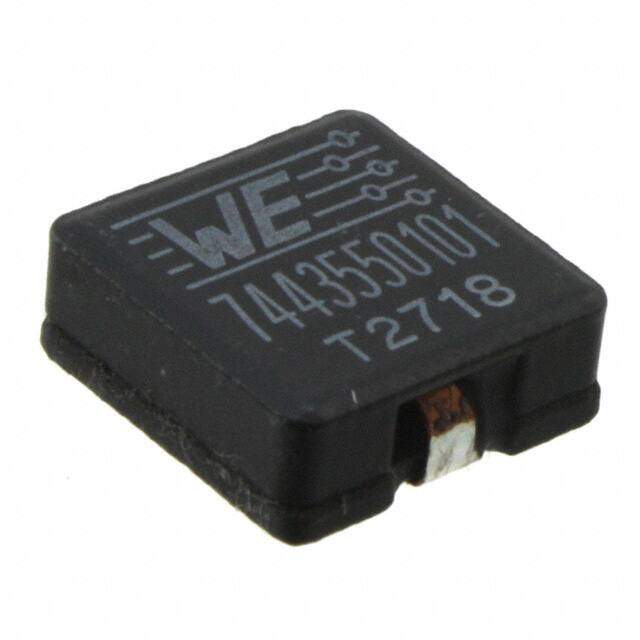

7443550101

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 10muH
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 1303
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 12.8mm
Length 13.0048mm
Height Seated (Max) 0.197 5.00mm
Height 4.7mm

Technical

Series Resistance 14.1Ohm
RMS Current (Irms) 8.5A
Inductance Tolerance 20%
Current - Saturation 10A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 18MHz
Max DC Current 8.5A
DC Resistance (DCR) 14.1mOhm
Test Frequency 100kHz
Inductance 10μH
Current Rating 8.5A
Shielding Shielded
Current Rating (Amps) 8.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 155°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~155°C

Physical

Supplier Device Package 1350
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
