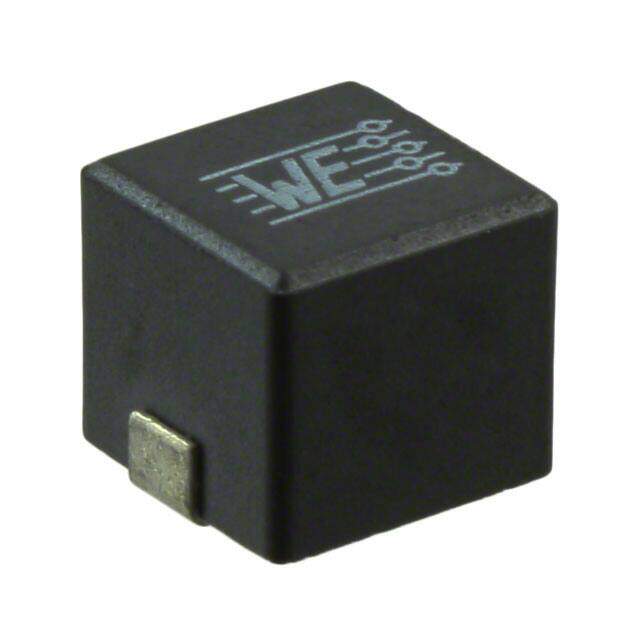

7443341000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCC Nonstandard 0.331Lx0.311W 8.40mmx7.90mm 10muH
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6847
≥1 USD $2.6847
≥10 USD $2.20305
≥100 USD $2.13465
≥500 USD $2.0653
≥1000 USD $1.9969
Inventory: 1178
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-HCC
Size / Dimension 0.331Lx0.311W 8.40mmx7.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 4.4A
Shielding Shielded
Current Rating 4.4A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 41mOhm Max
Max DC Current 4.4A
Frequency - Self Resonant 29MHz
Inductance Frequency - Test 100kHz
Current - Saturation 7A
Inductance Tolerance 20%
RMS Current (Irms) 4.4A
Series Resistance 40.5mOhm
Dimensions
Height 7.2mm
Height Seated (Max) 0.295 7.50mm
Length 8.4074mm
Width 7.8994mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
