7443330680
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCC Nonstandard 0.429Lx0.394W 10.90mmx10.00mm 6.8muH
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.96805
≥1 USD $0.96805
≥10 USD $0.7942
≥100 USD $0.7695
≥500 USD $0.7448
≥1000 USD $0.7201
Inventory: 1093
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10.0076mm
Length 10.8966mm
Height Seated (Max) 0.382 9.70mm
Height 9.3mm
Technical
Series Resistance 13.2mOhm
RMS Current (Irms) 11.5A
Inductance Tolerance 20%
Current - Saturation 11A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 40MHz
Max DC Current 11A
DC Resistance (DCR) 15mOhm Max
Test Frequency 100kHz
Inductance 6.8μH
Current Rating 11.5A
Shielding Shielded
Current Rating (Amps) 11.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.429Lx0.394W 10.90mmx10.00mm
Series WE-HCC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks

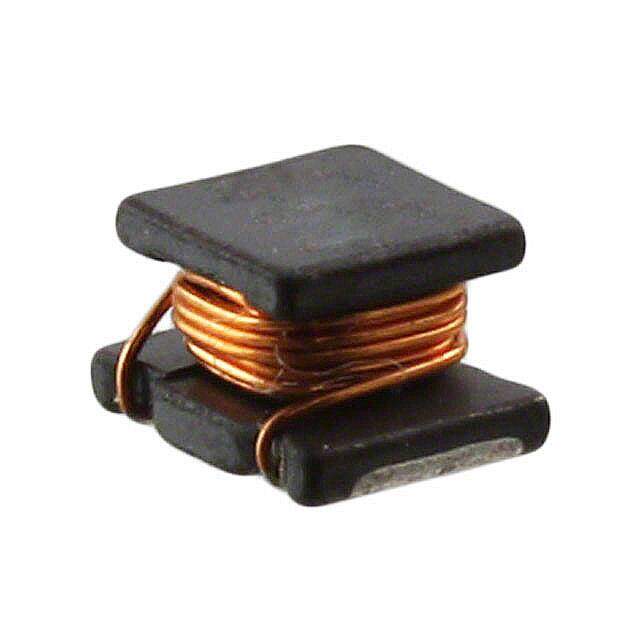

Alternative Model
