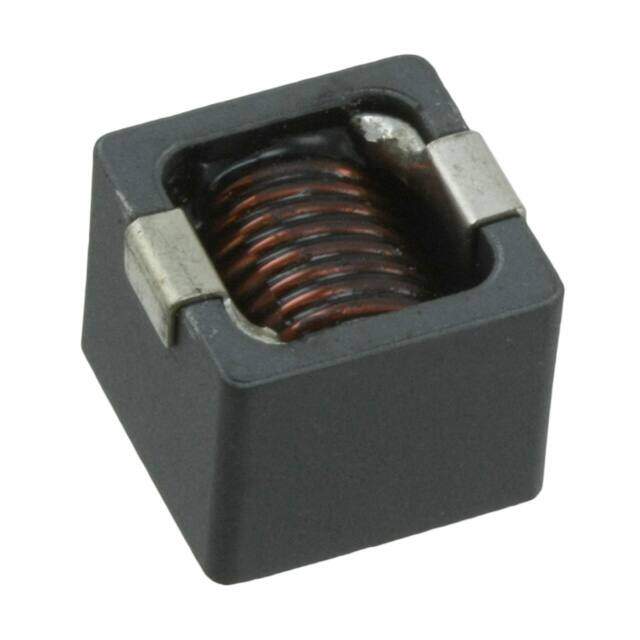

7443320220 image
Favorite
7443320220 image
Favorite

7443320220

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCC Nonstandard 0.476Lx0.449W 12.10mmx11.40mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.65965
≥1 USD $1.65965
≥10 USD $1.36135
≥100 USD $1.31955
≥500 USD $1.2768
≥1000 USD $1.23405
Inventory: 979
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-HCC
Size / Dimension 0.476Lx0.449W 12.10mmx11.40mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 18A
Shielding Shielded
Current Rating 18A
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 4.3mOhm Max
Max DC Current 18A
Series Resistance 3.05mOhm
RMS Current (Irms) 18A
Inductance Tolerance 20%
Current - Saturation 23A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 64MHz

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 11.4046mm
Length 12.0904mm
Height Seated (Max) 0.394 10.00mm
Height 9.5mm
