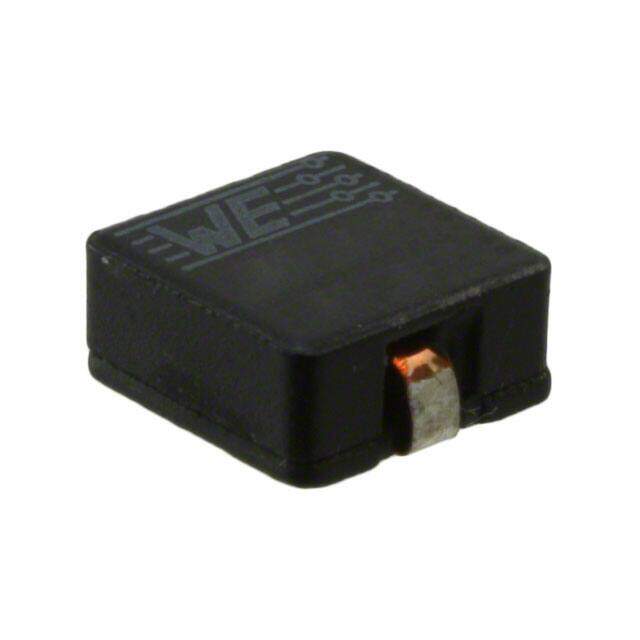

744325040
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.413Lx0.402W 10.50mmx10.20mm 400nH
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.7576
≥1 USD $3.7576
≥10 USD $3.6872
≥100 USD $3.4056
≥500 USD $3.2648
≥1000 USD $3.0536
Inventory: 898
Minimum: 1
-
+
Technical Details
Technical
Current Rating 24A
Inductance 400nH
Test Frequency 100kHz
Shielding Shielded
Current Rating (Amps) 24A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.413Lx0.402W 10.50mmx10.20mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Series Resistance 670mOhm
RMS Current (Irms) 24A
Inductance Tolerance 20%
Current - Saturation 37A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 160MHz
Max DC Current 24A
DC Resistance (DCR) 0.67mOhm
Physical
Supplier Device Package 1050
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10.2mm
Length 10.2108mm
Height Seated (Max) 0.197 5.00mm
Height 4.7mm
