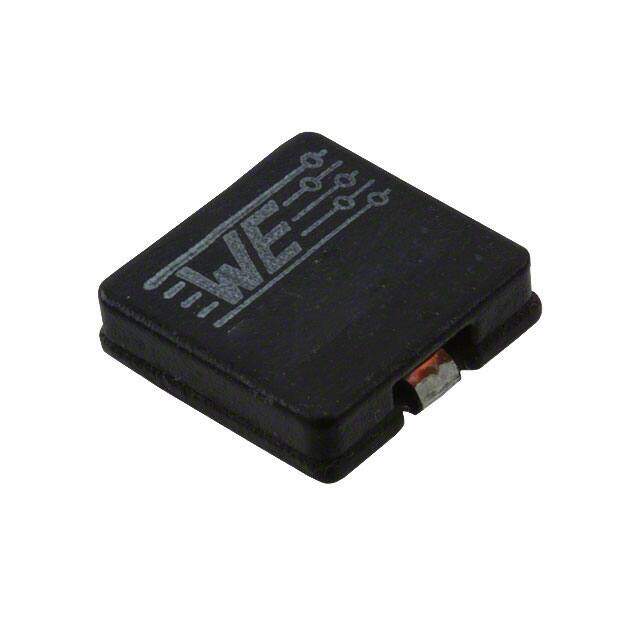

744323120
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.417Lx0.417W 10.60mmx10.60mm 1.2muH
PDF
/
Buying Options
Total Price: USD $2.96
Unit Price: USD $2.960131
≥1 USD $2.960131
≥10 USD $2.792577
≥100 USD $2.634506
≥500 USD $2.485387
≥1000 USD $2.344704
Inventory: 1820
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 10.6mm
Length 10.6mm
Height Seated (Max) 0.122 3.10mm
Height 2.8mm
Technical
Series Resistance 6.6Ohm
Inductance Tolerance 20%
Current - Saturation 15A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 59MHz
Max DC Current 12A
DC Resistance (DCR) 6.6mOhm
Test Frequency 100kHz
Inductance 1.2μH
Current Rating 12A
Depth 10.6mm
Shielding Shielded
Current Rating (Amps) 12A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.417Lx0.417W 10.60mmx10.60mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Supplier Device Package 1030
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
