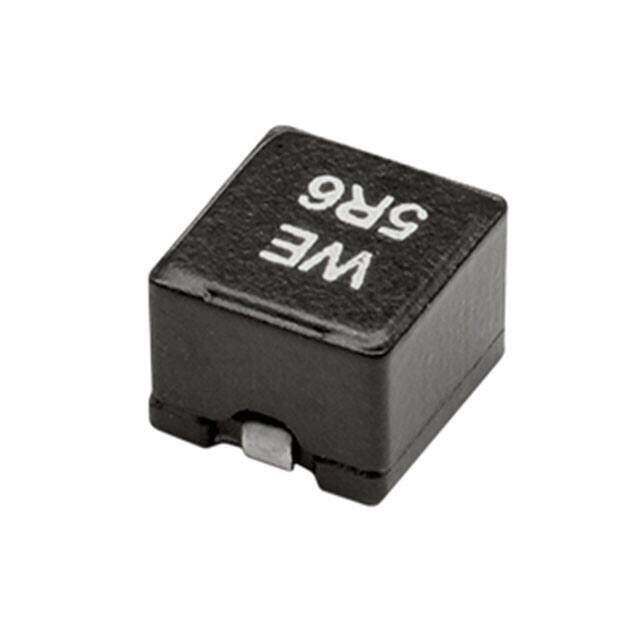

744316047 image
Favorite
744316047 image
Favorite
RoHS
RoHS RoHS compliant
Package 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCI 2-SMD 0.217Lx0.209W 5.50mmx5.30mm 470nH
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.137067
≥1 USD $2.137067
≥10 USD $2.016098
≥100 USD $1.901977
≥500 USD $1.79432
≥1000 USD $1.692757
Inventory: 1178
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 5.3086mm
Length 5.5118mm
Height Seated (Max) 0.169 4.30mm

Technical

RMS Current (Irms) 15A
Inductance Tolerance 20%
Current - Saturation 16A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 280MHz
DC Resistance (DCR) 2.75mOhm
Test Frequency 100kHz
Inductance 470nH
Current Rating 15A
Shielding Shielded
Current Rating (Amps) 15A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.217Lx0.209W 5.50mmx5.30mm
Series WE-HCI
Packaging Cut Tape (CT)
Operating Temperature -40°C~150°C

Physical

Supplier Device Package 5040
Number of Pins 2
Package / Case 2-SMD
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
