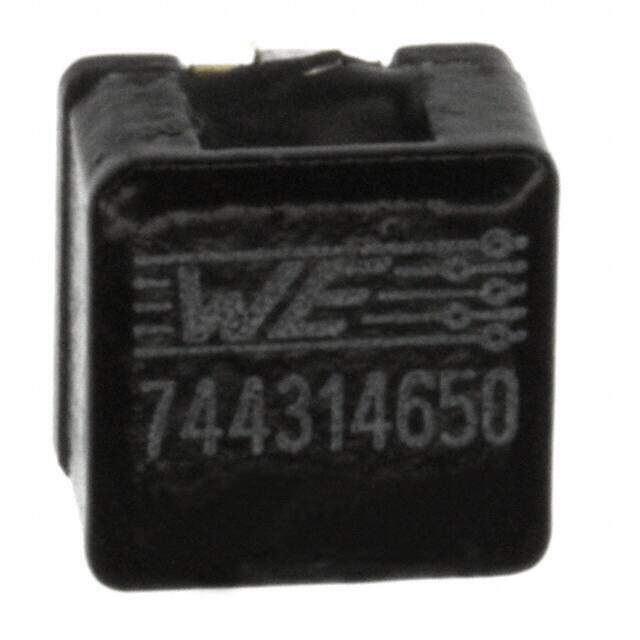

744314650
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 6.5muH
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 1122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 7050
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 22.5mOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 6A
Shielding Shielded
Depth 7.2mm
Current Rating 6A
Military Standard Not
Inductance 6.5μH
Test Frequency 100kHz
DC Resistance (DCR) 21.5mOhm
Max DC Current 6A
Frequency - Self Resonant 50MHz
Inductance Frequency - Test 100kHz
Current - Saturation 6A
Inductance Tolerance 20%
RMS Current (Irms) 6A
Series Resistance 21.5Ohm
Dimensions
Height 4.8mm
Height Seated (Max) 0.197 5.00mm
Length 7mm
Width 6.9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
