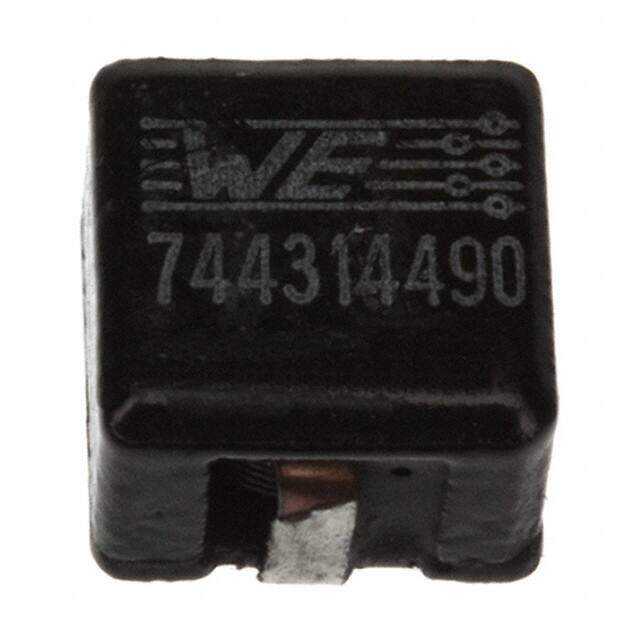

744314490 image
Favorite
744314490 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 4.9muH
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.35565
≥1 USD $1.35565
≥10 USD $1.11245
≥100 USD $1.0773
≥500 USD $1.04215
≥1000 USD $1.00795
Inventory: 1129
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 6.9mm
Length 7mm
Height Seated (Max) 0.197 5.00mm
Height 4.8mm

Technical

Series Resistance 14.5Ohm
RMS Current (Irms) 6.5A
Inductance Tolerance 20%
Current - Saturation 6.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 56MHz
Max DC Current 6.5A
DC Resistance (DCR) 14.5mOhm
Test Frequency 100kHz
Inductance 4.9μH
Military Standard Not
Current Rating 6.5A
Depth 7.2mm
Shielding Shielded
Current Rating (Amps) 6.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Resistance 14.5mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C

Physical

Supplier Device Package 7050
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
