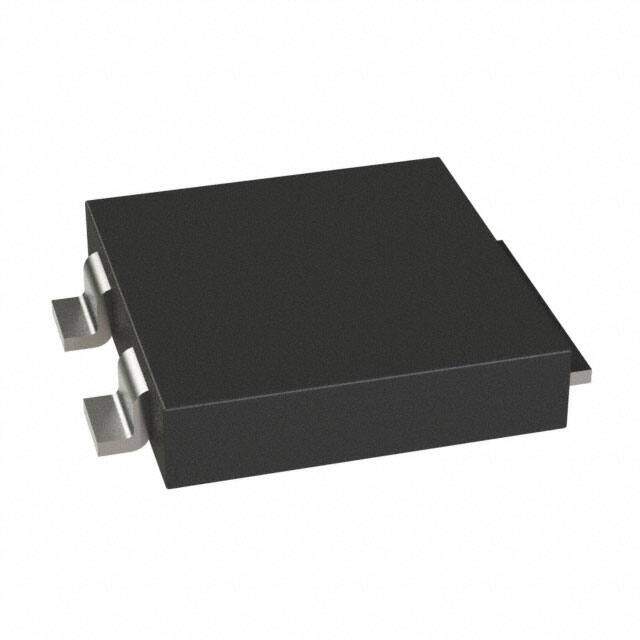

74431435018 image
Favorite
74431435018 image
Favorite

74431435018

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCM SMT HIGH CURRENT FLAT WIR
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.996961
≥1 USD $1.996961
≥10 USD $1.883925
≥100 USD $1.777281
≥500 USD $1.676687
≥1000 USD $1.581777
Inventory: 1287
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 1435
Material - Core Manganese Zinc Ferrite (MnZn)

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-HCM
Size / Dimension 0.537Lx0.531W 13.65mmx13.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 31A
Shielding Shielded
Inductance 180nH
DC Resistance (DCR) 0.28mOhm
Frequency - Self Resonant 63MHz
Inductance Frequency - Test 100kHz
Current - Saturation 55A

Dimensions

Height Seated (Max) 0.146 3.70mm

Compliance

RoHS Status ROHS3 Compliant
