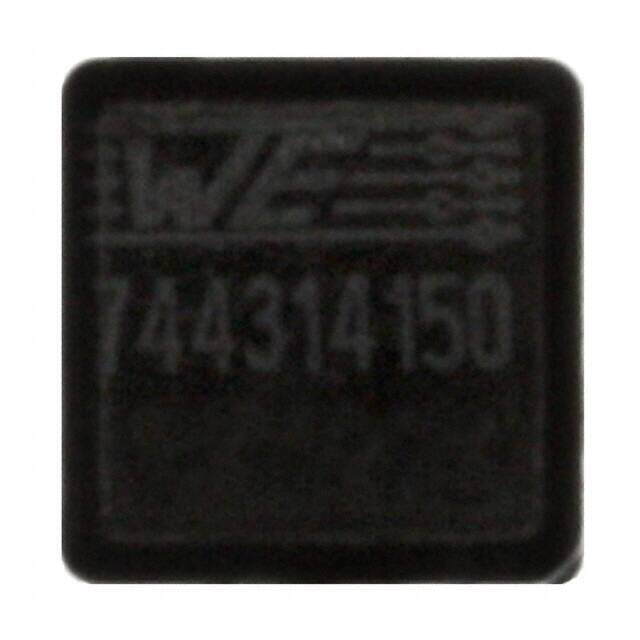

744314150
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 1.5muH
PDF
/
Buying Options
Total Price: USD $27.64
Unit Price: USD $27.64025
≥1 USD $27.64025
≥10 USD $22.67935
≥100 USD $21.97065
≥500 USD $21.26195
≥1000 USD $20.55325
Inventory: 1108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 7050
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 13A
Shielding Shielded
Current Rating 13A
Inductance 1.5μH
Test Frequency 100kHz
DC Resistance (DCR) 4.3mOhm
Max DC Current 13A
Frequency - Self Resonant 110MHz
Inductance Frequency - Test 100kHz
Current - Saturation 11A
Inductance Tolerance 20%
RMS Current (Irms) 13A
Series Resistance 4.3Ohm
Dimensions
Height 4.8mm
Height Seated (Max) 0.197 5.00mm
Length 6.9088mm
Width 6.9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
