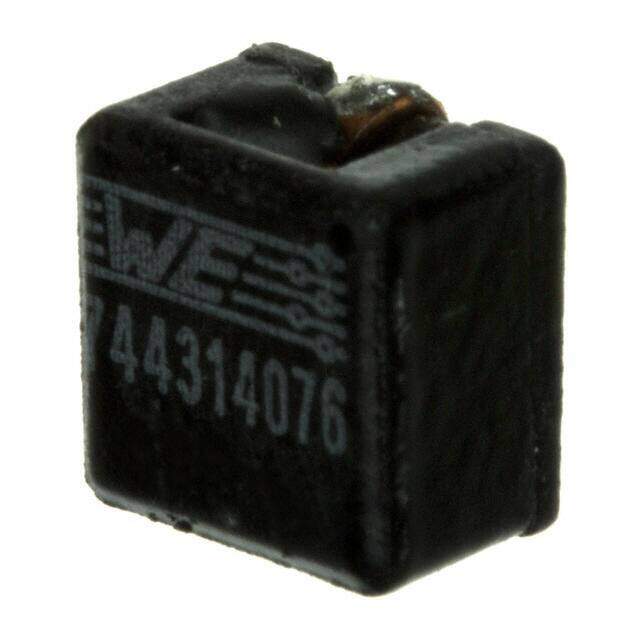

744314076
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 760nH
PDF
/
Buying Options
Total Price: USD $34.3
Unit Price: USD $34.29785
≥1 USD $34.29785
≥10 USD $28.14185
≥100 USD $27.2631
≥500 USD $26.3834
≥1000 USD $25.5037
Inventory: 1714
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 7050
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 15.5A
Shielding Shielded
Current Rating 15.5A
Lead Pitch 2.4mm
Inductance 760nH
Test Frequency 100kHz
DC Resistance (DCR) 2.25mOhm
Max DC Current 15.5A
Frequency - Self Resonant 200MHz
Inductance Frequency - Test 100kHz
Current - Saturation 15A
Inductance Tolerance 20%
RMS Current (Irms) 15.5A
Series Resistance 2.25Ohm
Dimensions
Height 4.8mm
Height Seated (Max) 0.197 5.00mm
Length 6.9088mm
Width 6.9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
