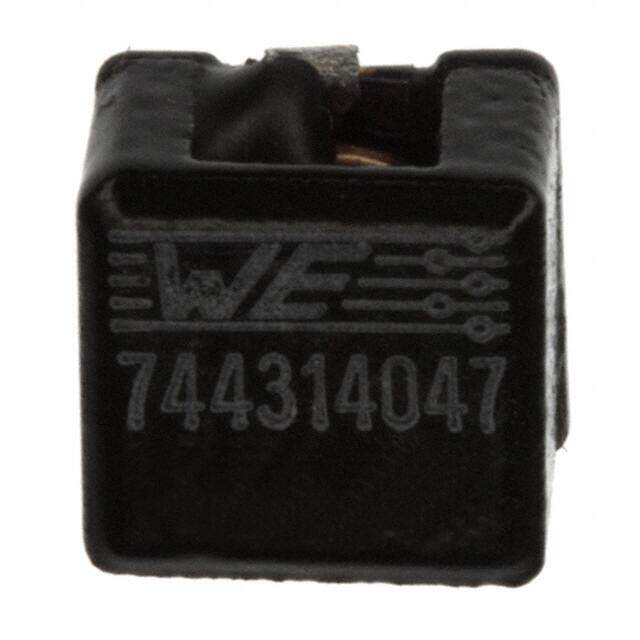

744314047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 470nH
PDF
/
Buying Options
Total Price: USD $3.04
Unit Price: USD $3.0419
≥1 USD $3.0419
≥10 USD $2.49565
≥100 USD $2.41775
≥500 USD $2.33985
≥1000 USD $2.26195
Inventory: 2048
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 6.9mm
Length 6.9088mm
Height Seated (Max) 0.197 5.00mm
Height 4.8mm
Technical
Series Resistance 1.35Ohm
RMS Current (Irms) 18A
Inductance Tolerance 20%
Current - Saturation 20A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 235MHz
Max DC Current 18A
DC Resistance (DCR) 1.35mOhm
Test Frequency 100kHz
Inductance 470nH
Current Rating 18A
Shielding Shielded
Current Rating (Amps) 18A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Supplier Device Package 7050
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
