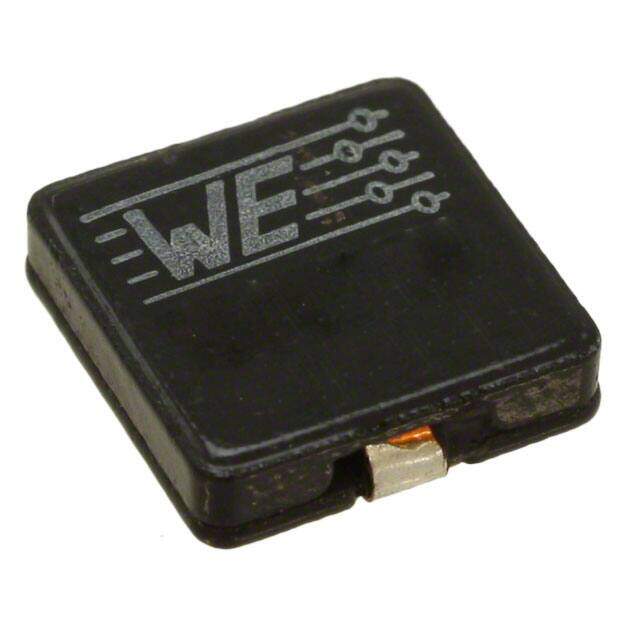

744313180
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.512Lx0.504W 13.00mmx12.80mm 1.8muH
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.7576
≥1 USD $3.7576
≥10 USD $3.6872
≥100 USD $3.4056
≥500 USD $3.2648
≥1000 USD $3.0536
Inventory: 696
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 1335
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.512Lx0.504W 13.00mmx12.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 5.6mOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 14A
Shielding Shielded
Current Rating 14A
Inductance 1.8μH
Test Frequency 100kHz
DC Resistance (DCR) 5.6mOhm
Max DC Current 14A
Frequency - Self Resonant 48MHz
Inductance Frequency - Test 100kHz
Current - Saturation 22A
Inductance Tolerance 20%
RMS Current (Irms) 14A
Dimensions
Height 3.3mm
Height Seated (Max) 0.138 3.50mm
Length 12.8016mm
Width 12.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
