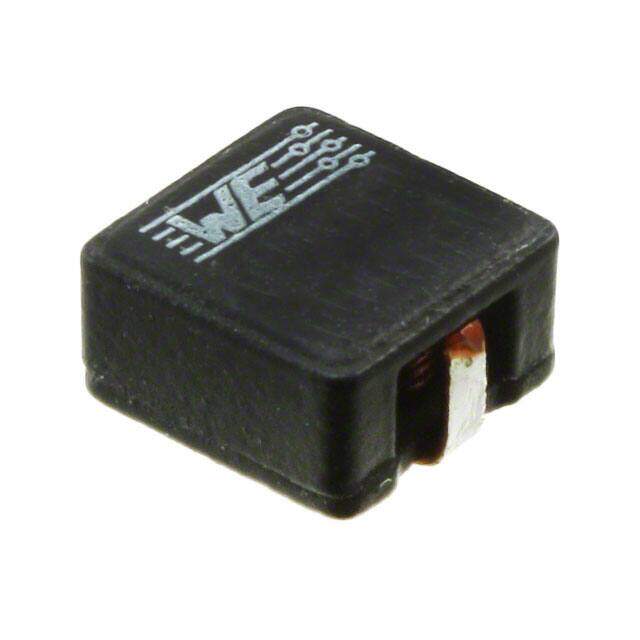

744311330
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7993
≥1 USD $1.7993
≥10 USD $1.4763
≥100 USD $1.4307
≥500 USD $1.38415
≥1000 USD $1.3376
Inventory: 13303
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 6.9mm
Length 7mm
Height Seated (Max) 0.157 4.00mm
Height 3.8mm
Technical
Series Resistance 17.2Ohm
RMS Current (Irms) 6.5A
Inductance Tolerance 20%
Current - Saturation 11A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 43MHz
Max DC Current 6.5A
DC Resistance (DCR) 17.2mOhm
Test Frequency 100kHz
Inductance 3.3μH
Current Rating 6.5A
Depth 6.9mm
Shielding Shielded
Current Rating (Amps) 6.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Resistance 17.2mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Supplier Device Package 7040
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
