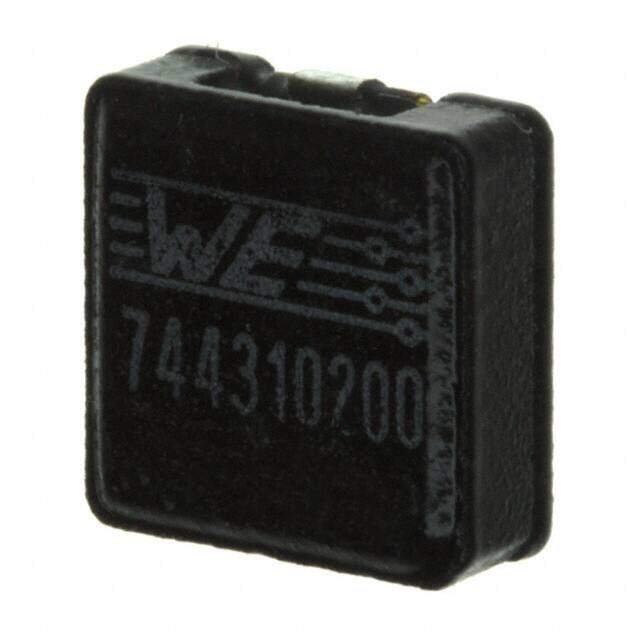

744310200
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 2muH
PDF
/
Buying Options
Total Price: USD $3.34
Unit Price: USD $3.344
≥1 USD $3.344
≥10 USD $3.2736
≥100 USD $3.0272
≥500 USD $2.8952
≥1000 USD $2.7104
Inventory: 1118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 7030
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Current Rating (Amps) 6.5A
Shielding Shielded
Current Rating 6.5A
Inductance 2μH
Test Frequency 100kHz
DC Resistance (DCR) 14.2mOhm
Max DC Current 6.5A
Frequency - Self Resonant 58MHz
Inductance Frequency - Test 100kHz
Current - Saturation 9A
Inductance Tolerance 20%
RMS Current (Irms) 6.5A
Series Resistance 14.2Ohm
Dimensions
Height 3mm
Height Seated (Max) 0.130 3.30mm
Length 7.0104mm
Width 6.9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
