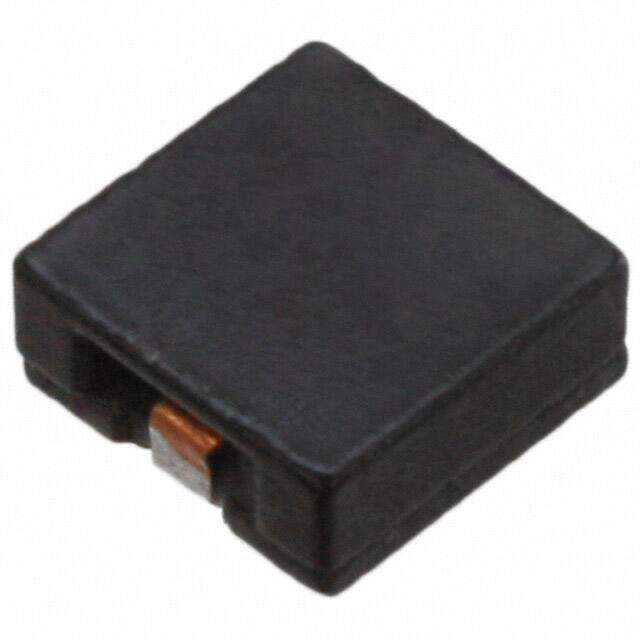

744310150
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 1.5muH
PDF
/
Buying Options
Total Price: USD $6.08
Unit Price: USD $6.08285
≥1 USD $6.08285
≥10 USD $4.9913
≥100 USD $4.8355
≥500 USD $4.6797
≥1000 USD $4.5239
Inventory: 1255
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 6.9mm
Length 6.9088mm
Height Seated (Max) 0.130 3.30mm
Height 3mm
Technical
Series Resistance 12.7Ohm
RMS Current (Irms) 7.5A
Inductance Tolerance 20%
Current - Saturation 12A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 80MHz
Max DC Current 7.5A
DC Resistance (DCR) 12.7mOhm
Test Frequency 100kHz
Inductance 1.5μH
Current Rating 7.5A
Shielding Shielded
Current Rating (Amps) 7.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Series WE-HCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Supplier Device Package 7030
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
