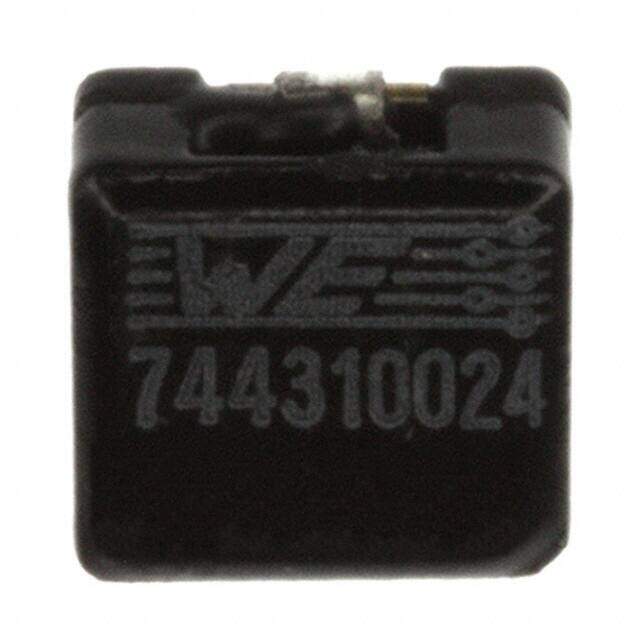

744310024
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCI Nonstandard 0.276Lx0.272W 7.00mmx6.90mm 240nH
PDF
/
Buying Options
Total Price: USD $39.22
Unit Price: USD $39.21885
≥1 USD $39.21885
≥10 USD $32.17935
≥100 USD $31.1733
≥500 USD $30.1682
≥1000 USD $29.16215
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Supplier Device Package 7030
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-HCI
Size / Dimension 0.276Lx0.272W 7.00mmx6.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 1.6mOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 18A
Shielding Shielded
Depth 6.9mm
Current Rating 18A
Inductance 240nH
Test Frequency 100kHz
DC Resistance (DCR) 1.8mOhm
Max DC Current 18A
Frequency - Self Resonant 220MHz
Inductance Frequency - Test 100kHz
Current - Saturation 40A
Inductance Tolerance 20%
RMS Current (Irms) 18A
Series Resistance 1.8Ohm
Dimensions
Height 3mm
Height Seated (Max) 0.130 3.30mm
Length 7mm
Width 6.9mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
