7443091062
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

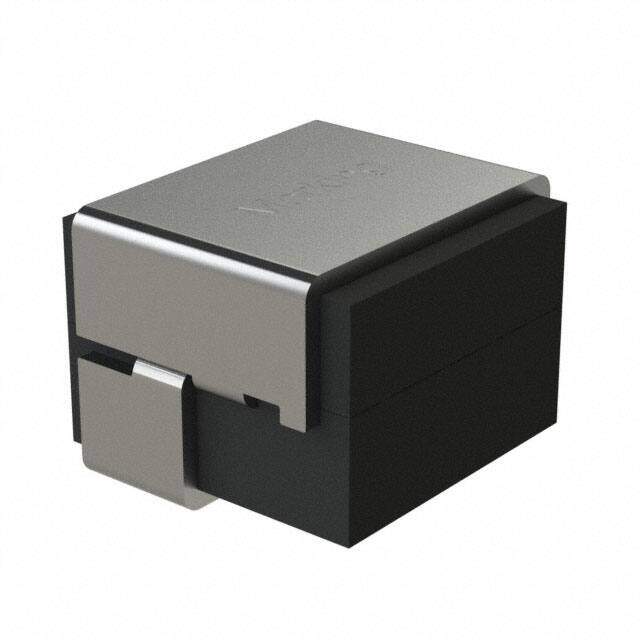

WE-HCM SMT HIGH CURRENT FLAT WIR
PDF
/
Buying Options
Total Price: USD $3.28
Unit Price: USD $3.2824
≥1 USD $3.2824
≥10 USD $2.74296
≥100 USD $2.504832
≥500 USD $2.147024
≥1000 USD $1.968032
Inventory: 344
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.421 10.70mm
Technical
Current - Saturation 62A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 25MHz
DC Resistance (DCR) 0.42mOhm
Inductance 620nH
Shielding Shielded
Current Rating (Amps) 34A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.571Lx0.531W 14.50mmx13.50mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Supplier Device Package 1411
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
