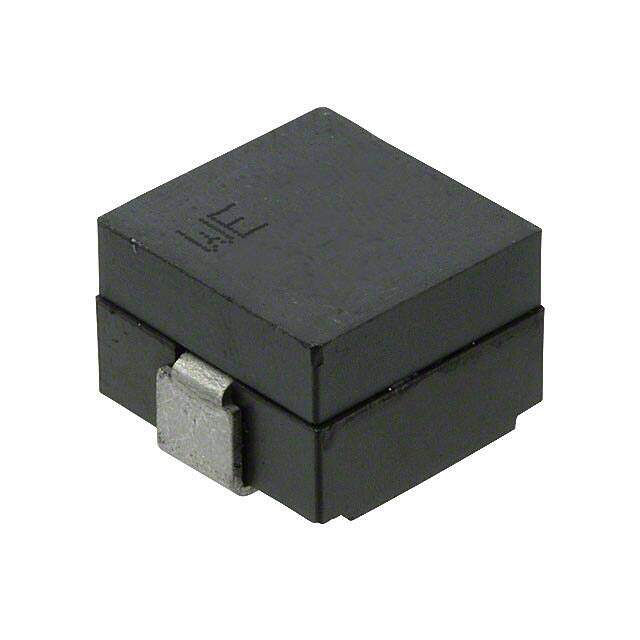

744309047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCM Nonstandard 0.551Lx0.512W 14.00mmx13.00mm 470nH
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.47535
≥1 USD $1.47535
≥10 USD $1.21125
≥100 USD $1.17325
≥500 USD $1.13525
≥1000 USD $1.09725
Inventory: 2687
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 13.0048mm
Length 13.9954mm
Height Seated (Max) 0.374 9.50mm
Height 9mm
Technical
RMS Current (Irms) 50A
Inductance Tolerance 20%
Current - Saturation 40.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 95MHz
Max DC Current 50A
DC Resistance (DCR) 0.165mOhm
Test Frequency 100kHz
Inductance 470nH
Current Rating 47.5A
Shielding Shielded
Current Rating (Amps) 47.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.551Lx0.512W 14.00mmx13.00mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
