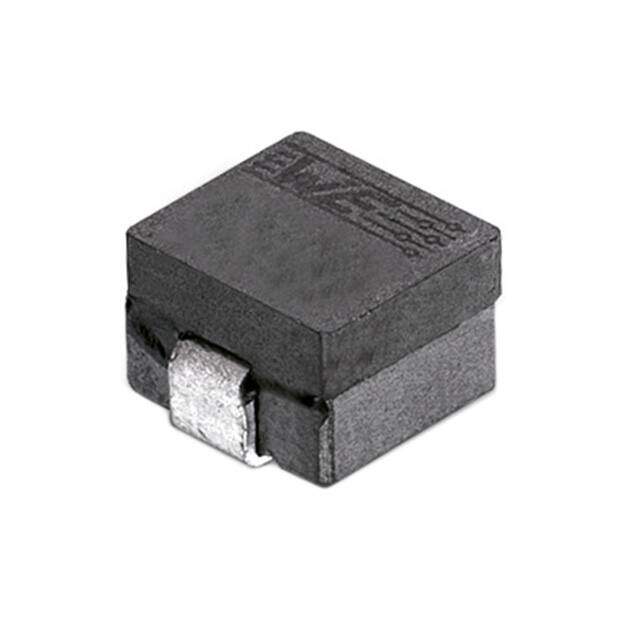

7443082012
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 120NH 60A 0.18MOHM SMD
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.642905
≥1 USD $1.642905
≥10 USD $1.549909
≥100 USD $1.462181
≥500 USD $1.37942
≥1000 USD $1.301345
Inventory: 1231
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.315 8.00mm
Technical
Inductance Tolerance 10%
Current - Saturation 94A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 0.18mOhm
Inductance 120nH
Shielding Shielded
Current Rating (Amps) 60A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.402Lx0.319W 10.20mmx8.10mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Supplier Device Package 1088
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
