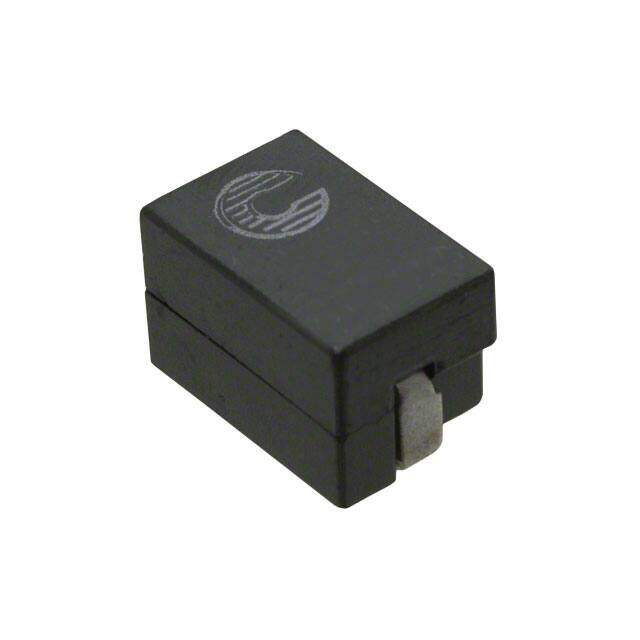

744308040 image
Favorite
744308040 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCM Nonstandard 0.398Lx0.276W 10.10mmx7.00mm 400nH
PDF
/
Buying Options
Total Price: USD $13.89
Unit Price: USD $13.89185
≥1 USD $13.89185
≥10 USD $11.39905
≥100 USD $11.0428
≥500 USD $10.68655
≥1000 USD $10.3303
Inventory: 1127
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 7mm
Length 10.1092mm
Height Seated (Max) 0.295 7.50mm
Height 7mm

Technical

RMS Current (Irms) 27A
Inductance Tolerance 20%
Current - Saturation 26A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 25MHz
Max DC Current 27A
DC Resistance (DCR) 0.37mOhm
Test Frequency 100kHz
Inductance 400nH
Current Rating 25A
Shielding Shielded
Current Rating (Amps) 25A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.398Lx0.276W 10.10mmx7.00mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
