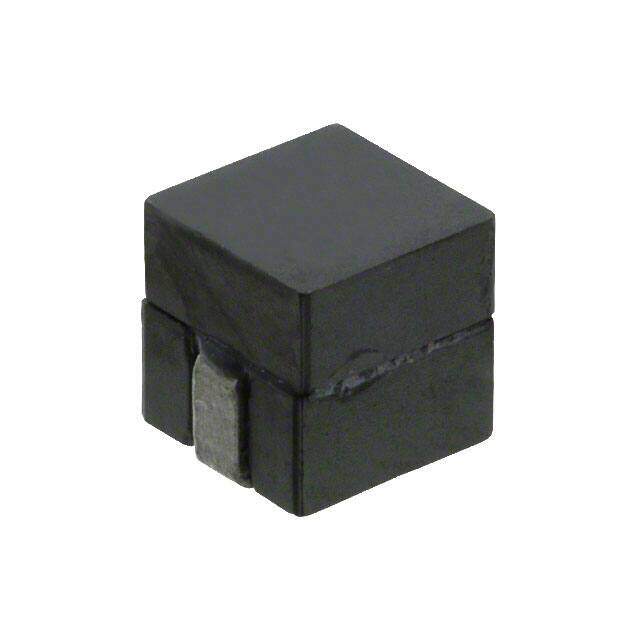

744307016
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCM Nonstandard 0.291Lx0.283W 7.40mmx7.20mm 160nH
PDF
/
Buying Options
Total Price: USD $1.45
Unit Price: USD $1.450021
≥1 USD $1.450021
≥10 USD $1.367939
≥100 USD $1.290516
≥500 USD $1.217461
≥1000 USD $1.148547
Inventory: 4325
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 7.2mm
Length 7.3914mm
Height Seated (Max) 0.283 7.20mm
Height 7.0104mm
Technical
RMS Current (Irms) 29A
Inductance Tolerance 20%
Current - Saturation 41A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 600MHz
Max DC Current 29A
DC Resistance (DCR) 0.29mOhm
Test Frequency 100kHz
Inductance 160nH
Current Rating 26A
Shielding Shielded
Current Rating (Amps) 26A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.291Lx0.283W 7.40mmx7.20mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
