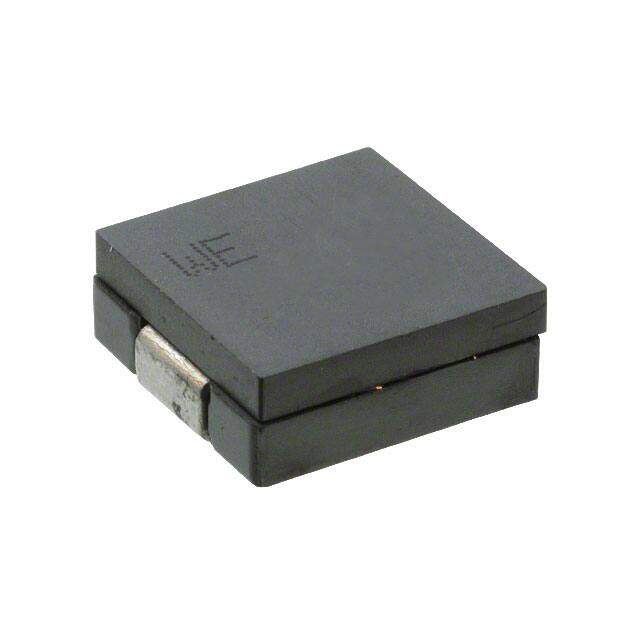

744305022
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCM Nonstandard 0.531Lx0.524W 13.50mmx13.30mm 220nH
PDF
/
Buying Options
Total Price: USD $13.74
Unit Price: USD $13.73985
≥1 USD $13.73985
≥10 USD $11.27365
≥100 USD $10.9212
≥500 USD $10.56875
≥1000 USD $10.21725
Inventory: 1276
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 13.3096mm
Length 13.4874mm
Height Seated (Max) 0.205 5.20mm
Height 5mm
Technical
Inductance Tolerance 20%
Current - Saturation 42A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 600MHz
Max DC Current 28A
DC Resistance (DCR) 0.155mOhm
Test Frequency 100kHz
Inductance 220nH
Current Rating 26A
Shielding Shielded
Current Rating (Amps) 26A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.531Lx0.524W 13.50mmx13.30mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
