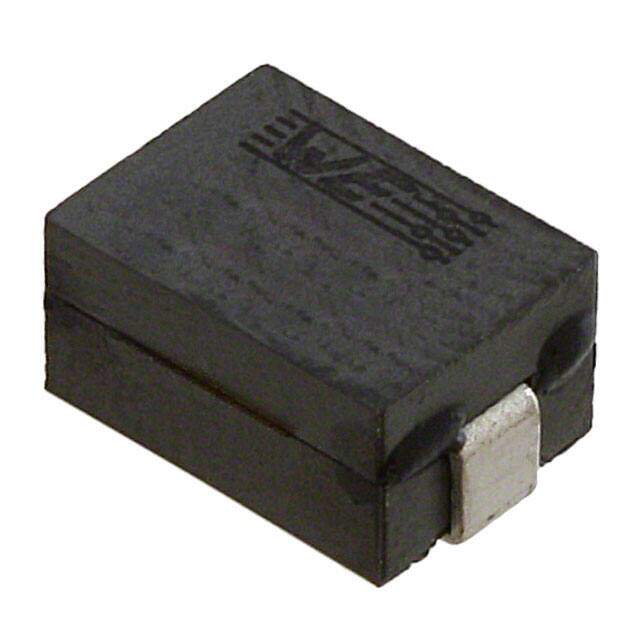

744303012
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCM Nonstandard 0.402Lx0.276W 10.20mmx7.00mm 120nH
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.583364
≥1 USD $1.583364
≥10 USD $1.493744
≥100 USD $1.409189
≥500 USD $1.329427
≥1000 USD $1.254173
Inventory: 1185
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 7.0104mm
Length 10.2108mm
Height Seated (Max) 0.197 5.00mm
Height 5mm
Technical
Inductance Tolerance 20%
Current - Saturation 55A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 150MHz
Max DC Current 31A
DC Resistance (DCR) 0.325mOhm
Test Frequency 100kHz
Inductance 120nH
Current Rating 31A
Shielding Shielded
Current Rating (Amps) 31A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 325μOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.402Lx0.276W 10.20mmx7.00mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
