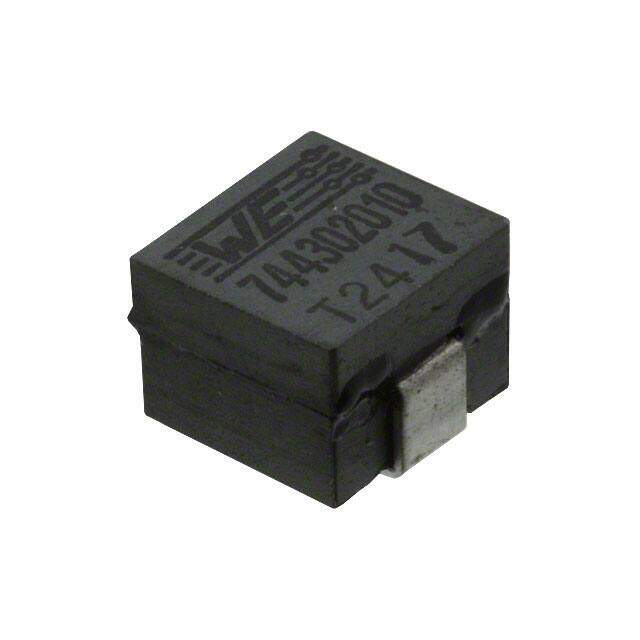

744302010
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCM Nonstandard 0.281Lx0.276W 7.15mmx7.00mm 105nH
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9405
≥1 USD $0.9405
≥10 USD $0.7714
≥100 USD $0.74765
≥500 USD $0.72295
≥1000 USD $0.6992
Inventory: 1106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Manganese Zinc Ferrite (MnZn)
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-HCM
Size / Dimension 0.281Lx0.276W 7.15mmx7.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 235μOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 30A
Shielding Shielded
Current Rating 30A
Inductance 105nH
Test Frequency 100kHz
DC Resistance (DCR) 0.235mOhm
Max DC Current 30A
Frequency - Self Resonant 70MHz
Inductance Frequency - Test 100kHz
Current - Saturation 45A
Inductance Tolerance 20%
RMS Current (Irms) 30A
Dimensions
Height 5.0038mm
Height Seated (Max) 0.197 5.00mm
Length 7.0104mm
Width 7.0104mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
