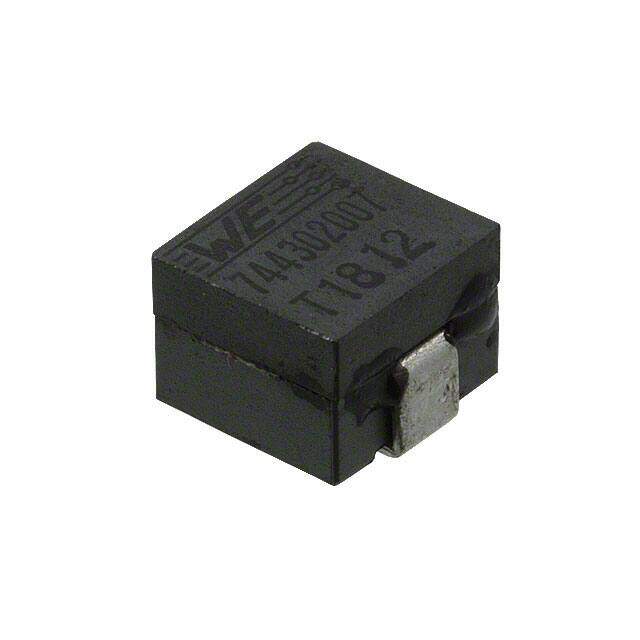

744302007
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-HCM Nonstandard 0.281Lx0.276W 7.15mmx7.00mm 72nH
PDF
/
Buying Options
Total Price: USD $16.12
Unit Price: USD $16.1215
≥1 USD $16.1215
≥10 USD $13.2278
≥100 USD $12.81455
≥500 USD $12.4013
≥1000 USD $11.98805
Inventory: 3132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 7.0104mm
Length 7.1374mm
Height Seated (Max) 0.197 5.00mm
Height 5mm
Technical
RMS Current (Irms) 30A
Inductance Tolerance 20%
Current - Saturation 60A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 150MHz
Max DC Current 30A
DC Resistance (DCR) 0.235mOhm
Test Frequency 100kHz
Inductance 72nH
Current Rating 30A
Shielding Shielded
Current Rating (Amps) 30A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 235μOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.281Lx0.276W 7.15mmx7.00mm
Series WE-HCM
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Manganese Zinc Ferrite (MnZn)
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 56 Weeks

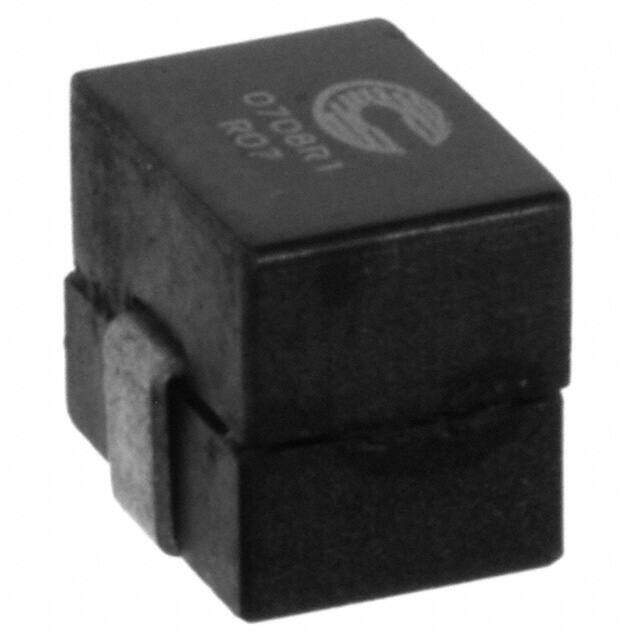

Alternative Model
