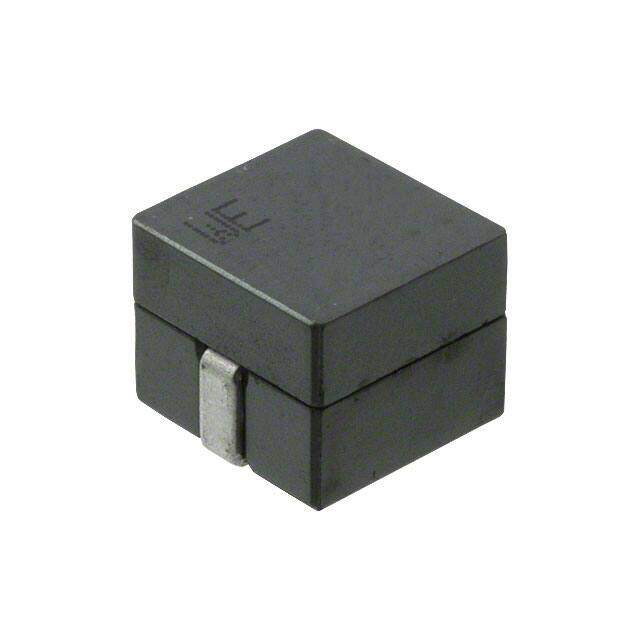

744301033 image
Favorite
744301033 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-HCM Nonstandard 0.445Lx0.433W 11.30mmx11.00mm 330nH
PDF
/
Buying Options
Total Price: USD $16.31
Unit Price: USD $16.31435
≥1 USD $16.31435
≥10 USD $13.38645
≥100 USD $12.96845
≥500 USD $12.5495
≥1000 USD $12.1315
Inventory: 1205
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 10.9982mm
Length 11.303mm
Height Seated (Max) 0.370 9.40mm
Height 8.9mm

Technical

RMS Current (Irms) 40A
Inductance Tolerance 20%
Current - Saturation 46A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 115MHz
Max DC Current 40A
DC Resistance (DCR) 0.32mOhm
Test Frequency 100kHz
Inductance 330nH
Current Rating 40A
Shielding Shielded
Current Rating (Amps) 40A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.445Lx0.433W 11.30mmx11.00mm
Series WE-HCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Manganese Zinc Ferrite (MnZn)
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
