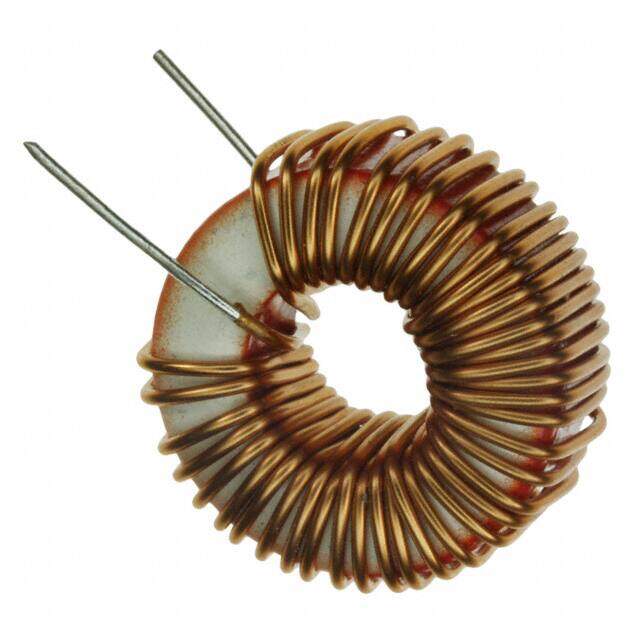

744155 image
Favorite
744155 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 220UH 7.1A 60 MOHM TH
PDF
/
Inventory: 8562
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 15.0114mm

Technical

Current - Saturation 2A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 4.7MHz
DC Resistance (DCR) 60mOhm Max
Test Frequency 10kHz
Inductance 220μH
Current Rating 5A
Shielding Unshielded
Current Rating (Amps) 7.1A
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 1.693Diax0.591W 43.00mmx15.00mm
Series WE-SI
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Material - Core Ferrite
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
