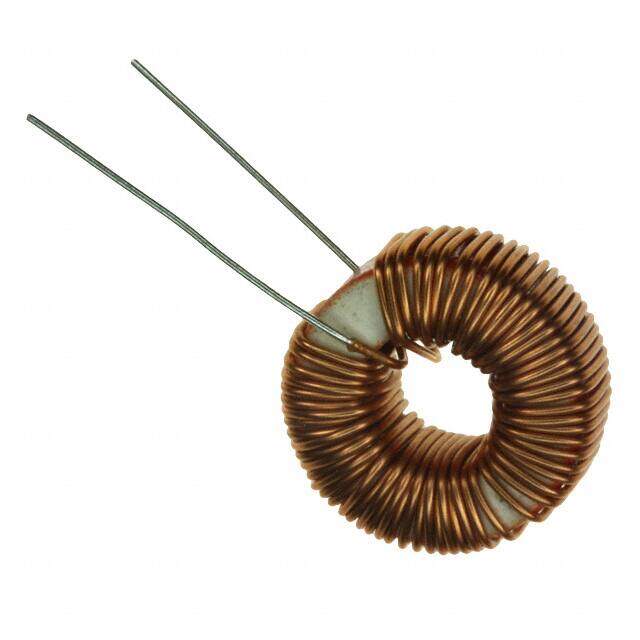

744115
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-SI Radial Vertical (Open) 0.709Diax0.354W 18.00mmx9.00mm 200muH
PDF
/
Buying Options
Total Price: USD $2.18
Unit Price: USD $2.175448
≥1 USD $2.175448
≥10 USD $2.05231
≥100 USD $1.936136
≥500 USD $1.826557
≥1000 USD $1.723162
Inventory: 1177
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole, Wire
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WE-SI
Size / Dimension 0.709Diax0.354W 18.00mmx9.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 2.2A
Shielding Unshielded
Depth 9mm
Current Rating 2.2A
Lead Pitch 7.5mm
Inductance 200μH
Test Frequency 10kHz
DC Resistance (DCR) 180mOhm Max
Max DC Current 1A
Frequency - Self Resonant 3MHz
Inductance Frequency - Test 10kHz
Current - Saturation 900mA
Dimensions
Diameter 18mm
Width 8.9916mm
Compliance
RoHS Status ROHS3 Compliant
