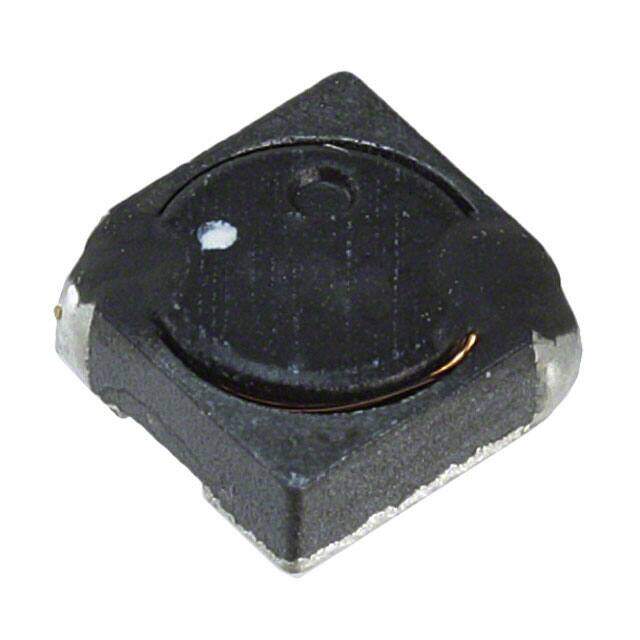

74408942012
RoHS
RoHS compliant
RoHS compliantPackage 1919 (4848 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-SPC 1919 (4848Metric) 0.189Lx0.189W 4.80mmx4.80mm 1.2muH
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.657165
≥1 USD $1.657165
≥10 USD $1.563365
≥100 USD $1.474873
≥500 USD $1.391385
≥1000 USD $1.312632
Inventory: 2527
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 4.8006mm
Length 4.8006mm
Height Seated (Max) 0.079 2.00mm
Height 1.8034mm
Technical
RMS Current (Irms) 3.2A
Inductance Tolerance 20%
Current - Saturation 5.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 82MHz
Max DC Current 5.5A
DC Resistance (DCR) 26mOhm Max
Test Frequency 100kHz
Inductance 1.2μH
Case Code (Imperial) 1919
Case Code (Metric) 4848
Current Rating 3.2A
Shielding Shielded
Current Rating (Amps) 3.2A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Series WE-SPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case 1919 (4848 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
