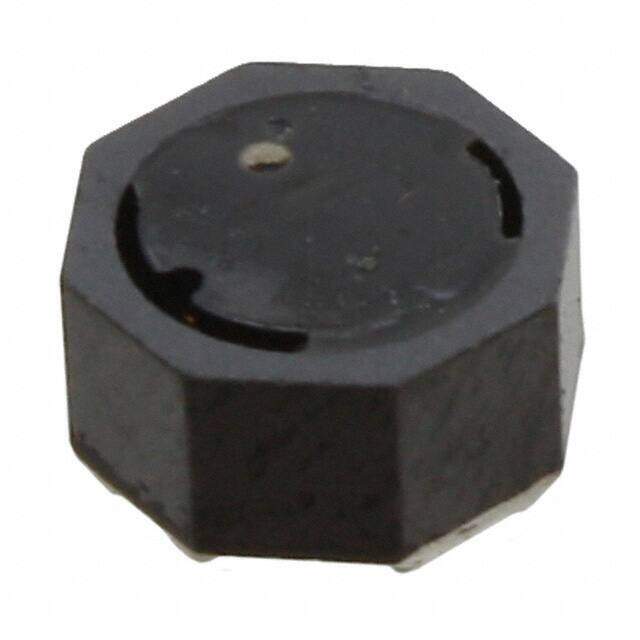

744071470
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 47UH 1.6A 150 MOHM SMD
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.701046
≥1 USD $1.701046
≥10 USD $1.604763
≥100 USD $1.513913
≥500 USD $1.428226
≥1000 USD $1.347385
Inventory: 1146
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.181 4.60mm
Technical
Inductance Tolerance 30%
Current - Saturation 1.3A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 10MHz
DC Resistance (DCR) 150mOhm Max
Inductance 47μH
Shielding Shielded
Current Rating (Amps) 1.6A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Series WE-TPC
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 42 Weeks
