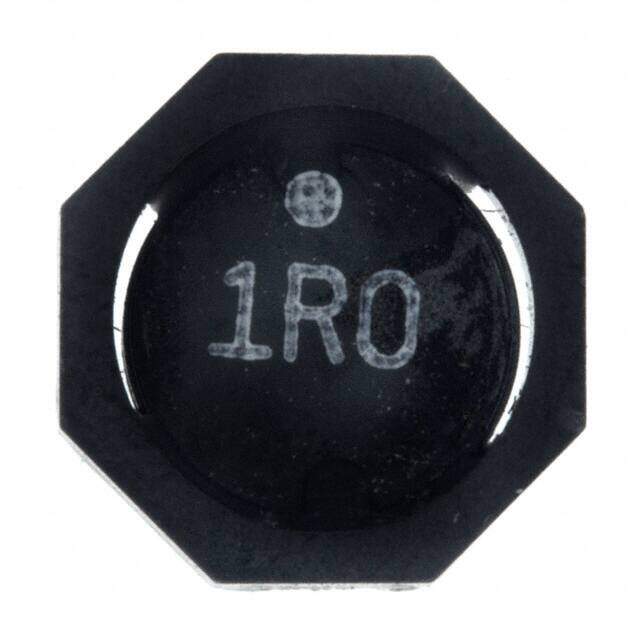

744065150
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TPC Nonstandard 0.394Lx0.394W 10.00mmx10.00mm 15muH
PDF
/
Buying Options
Total Price: USD $13.36
Unit Price: USD $13.35795
≥1 USD $13.35795
≥10 USD $10.9611
≥100 USD $10.61815
≥500 USD $10.27615
≥1000 USD $9.9332
Inventory: 1119
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10mm
Length 10mm
Height Seated (Max) 0.122 3.10mm
Height 2.8mm
Technical
Series Resistance 90mOhm
RMS Current (Irms) 2.2A
Inductance Tolerance 30%
Current - Saturation 2.25A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 22MHz
Max DC Current 2.2A
DC Resistance (DCR) 90mOhm Max
Test Frequency 100kHz
Inductance 15μH
Current Rating 2.2A
Depth 10mm
Shielding Shielded
Current Rating (Amps) 2.2A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.394Lx0.394W 10.00mmx10.00mm
Series WE-TPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
