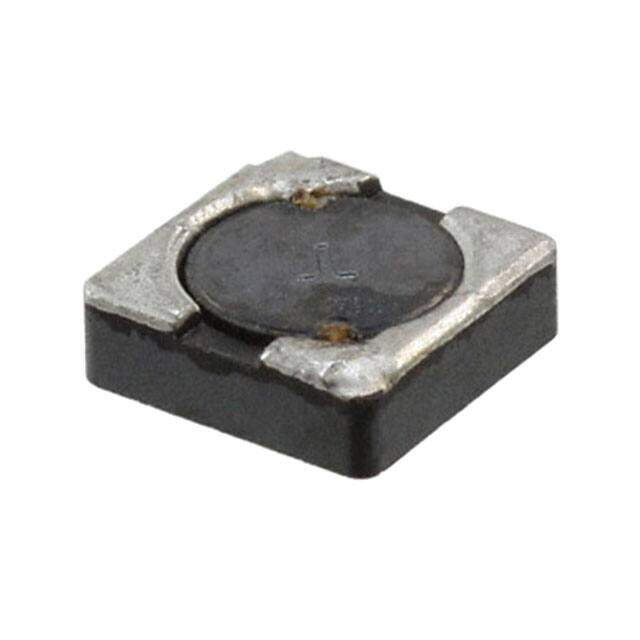

744062100
RoHS
RoHS compliant
RoHS compliantPackage 2727 (6868 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TPC 2727 (6868Metric) 0.268Lx0.268W 6.80mmx6.80mm 10muH
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.2445
≥1 USD $1.2445
≥10 USD $1.02125
≥100 USD $0.9899
≥500 USD $0.9576
≥1000 USD $0.9253
Inventory: 1179
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 6.8mm
Length 6.8mm
Height Seated (Max) 0.098 2.50mm
Height 2.3mm
Technical
RMS Current (Irms) 1.6A
Inductance Tolerance 30%
Current - Saturation 1.4A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 35MHz
Max DC Current 1.6mA
DC Resistance (DCR) 70mOhm Max
Test Frequency 100kHz
Inductance 10μH
Case Code (Imperial) 2727
Case Code (Metric) 6868
Current Rating 1.6A
Depth 6.8mm
Shielding Shielded
Current Rating (Amps) 1.6A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 53mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.268Lx0.268W 6.80mmx6.80mm
Series WE-TPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case 2727 (6868 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
