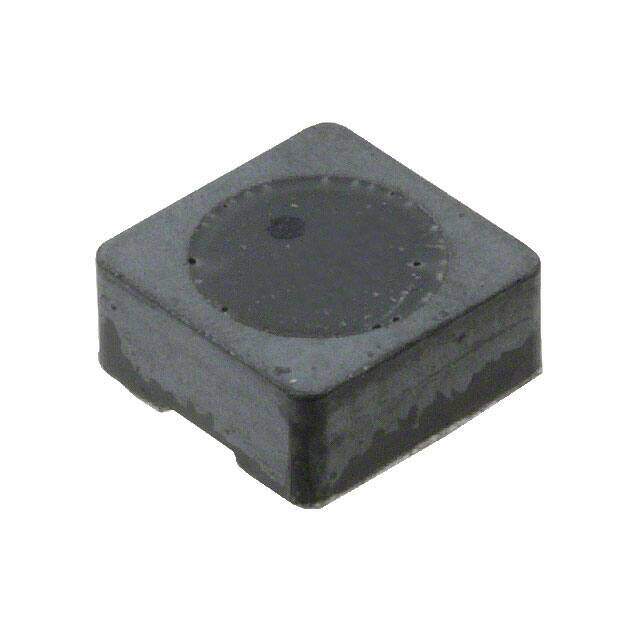

744053680
RoHS
RoHS compliant
RoHS compliantPackage 2323 (5858 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TPC 2323 (5858Metric) 0.228Lx0.228W 5.80mmx5.80mm 68muH
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.29545
≥1 USD $0.29545
≥10 USD $0.2432
≥100 USD $0.2356
≥500 USD $0.228
≥1000 USD $0.2204
Inventory: 173796
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 5.8mm
Length 5.8mm
Height Seated (Max) 0.118 3.00mm
Height 2.8mm
Technical
Series Resistance 350mOhm
RMS Current (Irms) 750mA
Inductance Tolerance 30%
Current - Saturation 560mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 10MHz
Max DC Current 750mA
DC Resistance (DCR) 350mOhm Max
Test Frequency 100kHz
Inductance 68μH
Case Code (Imperial) 2323
Case Code (Metric) 5858
Current Rating 750mA
Depth 5.8mm
Shielding Shielded
Current Rating (Amps) 750mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.228Lx0.228W 5.80mmx5.80mm
Series WE-TPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 378.012541mg
Package / Case 2323 (5858 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
