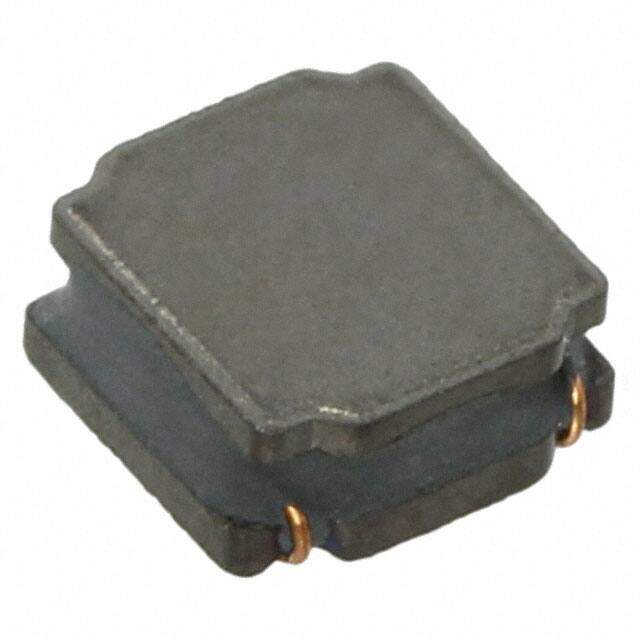

74405031015
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 1.5UH 2.2A 77 MOHM MAX
PDF
/
Inventory: 4700
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.047 1.20mm
Technical
Inductance Tolerance 20%
Current - Saturation 4.1A
Inductance Frequency - Test 1MHz
Frequency - Self Resonant 60MHz
DC Resistance (DCR) 77mOhm Max
Inductance 1.5μH
Shielding Semi-Shielded
Current Rating (Amps) 2.2A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.118Lx0.106W 3.00mmx2.70mm
Series WE-LQSH
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Supplier Device Package 3012
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
