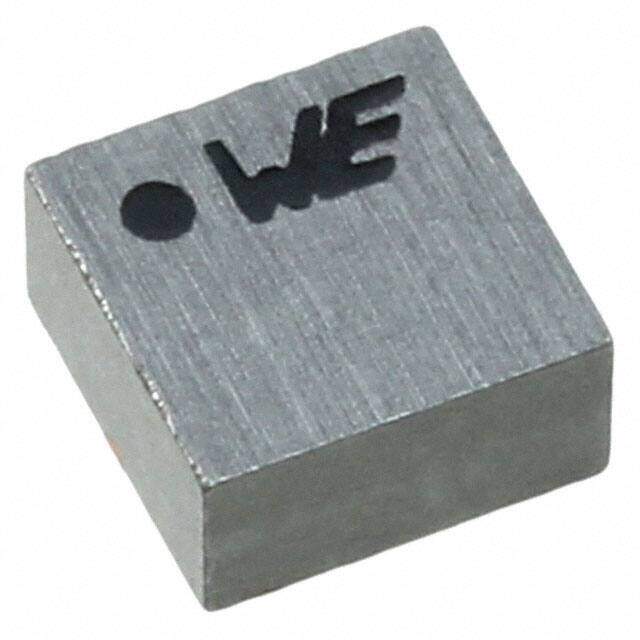

74405020015
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 1.5UH 1.4A 132 MOHM
PDF
/
Inventory: 964
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package SMD
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LQSH
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.4A
Shielding Semi-Shielded
Inductance 1.5μH
DC Resistance (DCR) 132mOhm Max
Frequency - Self Resonant 74MHz
Inductance Frequency - Test 1MHz
Current - Saturation 2.3A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
