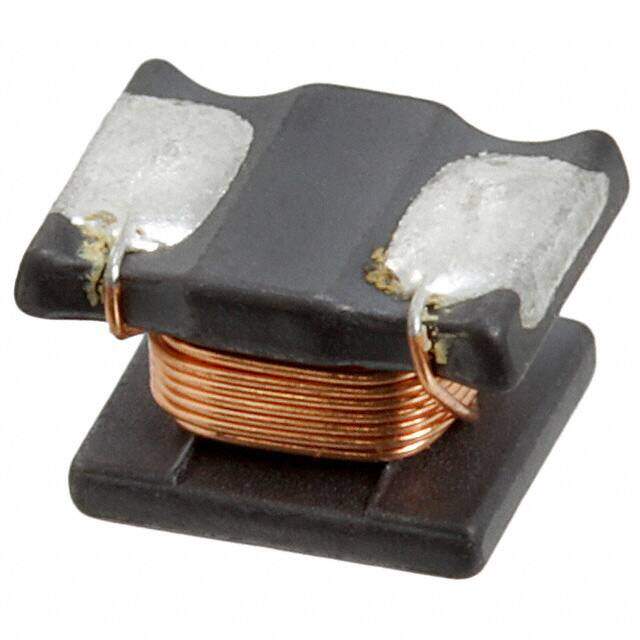

744045220
RoHS
RoHS compliant
RoHS compliantPackage 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LQ 1812 (4532Metric) 0.177Lx0.126W 4.50mmx3.20mm 22muH
PDF
/
Buying Options
Total Price: USD $5.1
Unit Price: USD $5.0996
≥1 USD $5.0996
≥10 USD $4.18475
≥100 USD $4.05365
≥500 USD $3.92255
≥1000 USD $3.7924
Inventory: 1181
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 4.5mm
Length 4.4958mm
Height Seated (Max) 0.114 2.90mm
Height 2.6mm
Technical
RMS Current (Irms) 630mA
Inductance Tolerance 10%
Q Factor 50
Current - Saturation 1A
Inductance Frequency - Test 1MHz
Q @ Freq 50 @ 1MHz
Frequency - Self Resonant 20MHz
Max DC Current 630mA
DC Resistance (DCR) 700mOhm Max
Test Frequency 1MHz
Inductance 22μH
Case Code (Imperial) 1812
Case Code (Metric) 4532
Current Rating 630mA
Shielding Unshielded
Current Rating (Amps) 630mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Series WE-LQ
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Supplier Device Package 1812
Package / Case 1812 (4532 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
