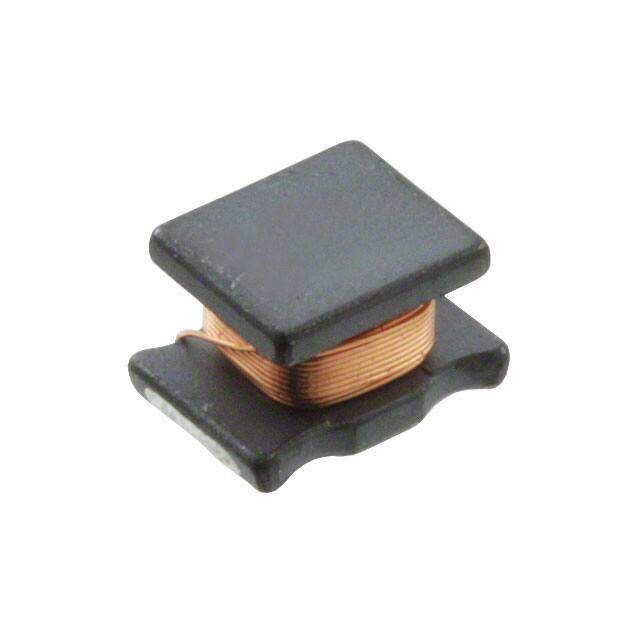

744045215
RoHS
RoHS compliant
RoHS compliantPackage 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LQ 1812 (4532Metric) 0.177Lx0.126W 4.50mmx3.20mm 150muH
PDF
/
Buying Options
Total Price: USD $8.09
Unit Price: USD $8.0902
≥1 USD $8.0902
≥10 USD $6.6386
≥100 USD $6.4315
≥500 USD $6.22345
≥1000 USD $6.01635
Inventory: 1090
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Weight 26.988746mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LQ
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 220mA
Shielding Unshielded
Current Rating 220mA
Case Code (Metric) 4532
Case Code (Imperial) 1812
Inductance 150μH
Test Frequency 1MHz
DC Resistance (DCR) 3.7Ohm Max
Max DC Current 220mA
Frequency - Self Resonant 8MHz
Q @ Freq 55 @ 796kHz
Inductance Frequency - Test 1MHz
Current - Saturation 420mA
Q Factor 55
Inductance Tolerance 10%
RMS Current (Irms) 220mA
Dimensions
Height 2.6mm
Height Seated (Max) 0.114 2.90mm
Length 4.4958mm
Width 4.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
