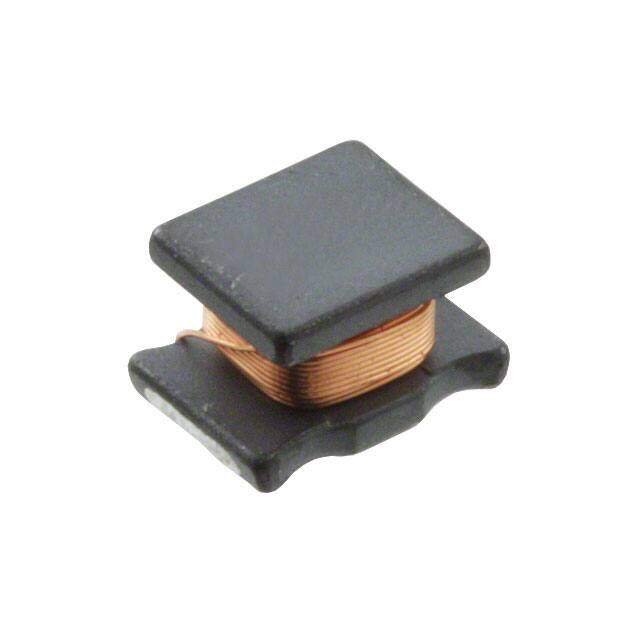

744045210 image
Favorite
744045210 image
Favorite
RoHS
RoHS RoHS compliant
Package 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-LQ 1812 (4532Metric) 0.177Lx0.126W 4.50mmx3.20mm 100muH
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.22135
≥1 USD $0.22135
≥10 USD $0.1824
≥100 USD $0.1767
≥500 USD $0.171
≥1000 USD $0.1653
Inventory: 1212
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 4.5mm
Length 4.4958mm
Height Seated (Max) 0.114 2.90mm
Height 2.6mm

Technical

RMS Current (Irms) 270mA
Inductance Tolerance 10%
Q Factor 60
Current - Saturation 450mA
Inductance Frequency - Test 1MHz
Q @ Freq 60 @ 796kHz
Frequency - Self Resonant 10MHz
Max DC Current 270mA
DC Resistance (DCR) 2.5Ohm Max
Test Frequency 1MHz
Inductance 100μH
Case Code (Imperial) 1812
Case Code (Metric) 4532
Current Rating 270mA
Shielding Unshielded
Current Rating (Amps) 270mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Series WE-LQ
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 26.988746mg
Supplier Device Package 1812
Package / Case 1812 (4532 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
