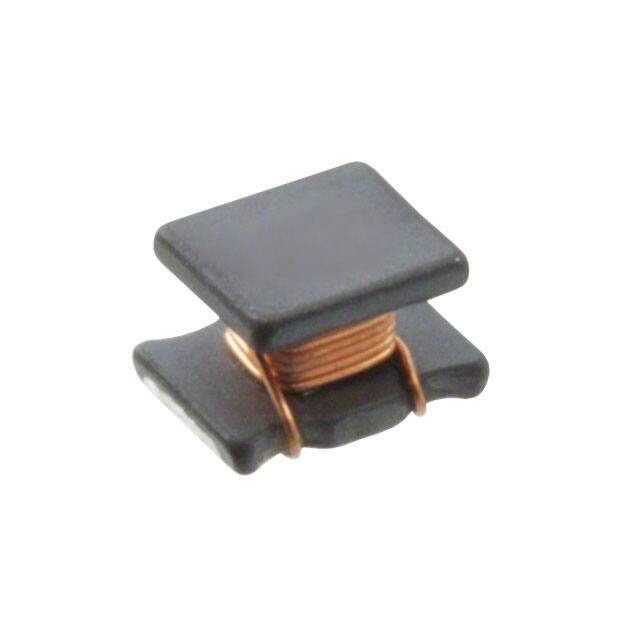

744045102
RoHS
RoHS compliant
RoHS compliantPackage 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 1MH 70MA 30 OHM SMD
PDF
/
Buying Options
Total Price: USD $5.48
Unit Price: USD $5.47865
≥1 USD $5.47865
≥10 USD $4.4954
≥100 USD $4.3548
≥500 USD $4.2142
≥1000 USD $4.0736
Inventory: 1342
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LQ
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 70mA
Shielding Unshielded
Inductance 1mH
DC Resistance (DCR) 30Ohm Max
Frequency - Self Resonant 2MHz
Q @ Freq 28 @ 252kHz
Inductance Frequency - Test 1kHz
Current - Saturation 160mA
Q Factor 28
Inductance Tolerance 10%
Dimensions
Height Seated (Max) 0.114 2.90mm
Width 4.5mm
Compliance
RoHS Status ROHS3 Compliant
