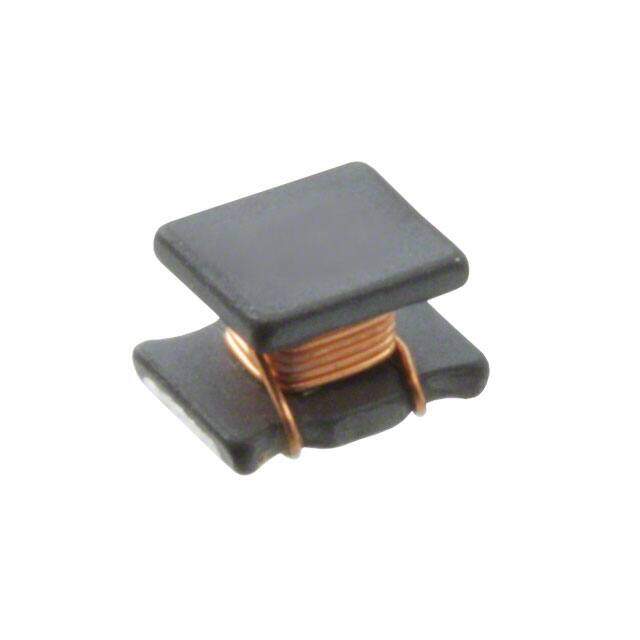

744045008
RoHS
RoHS compliant
RoHS compliantPackage 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LQ 1812 (4532Metric) 0.177Lx0.126W 4.50mmx3.20mm 8.2muH
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.631486
≥1 USD $0.631486
≥10 USD $0.595746
≥100 USD $0.562016
≥500 USD $0.530207
≥1000 USD $0.500198
Inventory: 4584
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LQ
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1A
Shielding Unshielded
Current Rating 1A
Case Code (Metric) 4532
Case Code (Imperial) 1812
Inductance 8.2μH
Test Frequency 1MHz
DC Resistance (DCR) 250mOhm Max
Max DC Current 1A
Frequency - Self Resonant 34MHz
Q @ Freq 36 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 1.6A
Q Factor 36
Inductance Tolerance 20%
RMS Current (Irms) 1A
Dimensions
Height 2.6mm
Height Seated (Max) 0.114 2.90mm
Length 4.4958mm
Width 4.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
