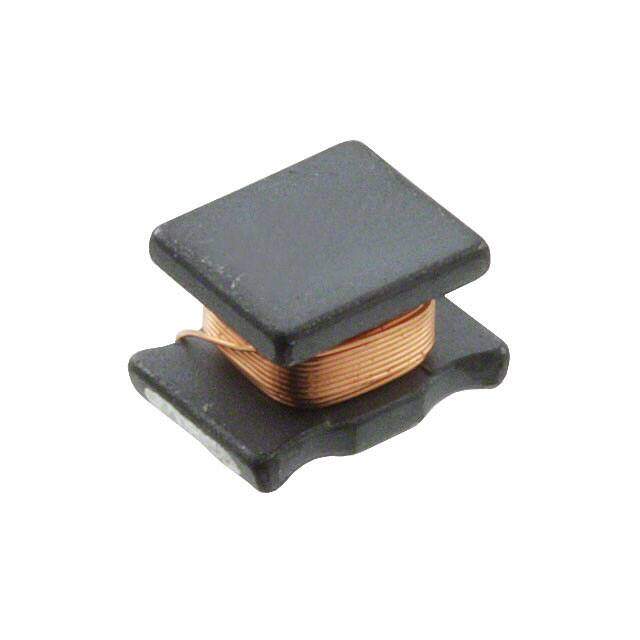

744045006 image
Favorite
744045006 image
Favorite
RoHS
RoHS RoHS compliant
Package 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-LQ 1812 (4532Metric) 0.177Lx0.126W 4.50mmx3.20mm 6.8muH
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
Inventory: 1162
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 4.5mm
Length 4.4958mm
Height Seated (Max) 0.114 2.90mm
Height 2.6mm

Technical

RMS Current (Irms) 1.1A
Inductance Tolerance 20%
Q Factor 36
Current - Saturation 1.6A
Inductance Frequency - Test 1MHz
Q @ Freq 36 @ 1MHz
Frequency - Self Resonant 37MHz
Max DC Current 1.1A
DC Resistance (DCR) 200mOhm Max
Test Frequency 1MHz
Inductance 6.8μH
Case Code (Imperial) 1812
Case Code (Metric) 4532
Current Rating 1.1A
Shielding Unshielded
Current Rating (Amps) 1.1A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Series WE-LQ
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Supplier Device Package 1812
Package / Case 1812 (4532 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
