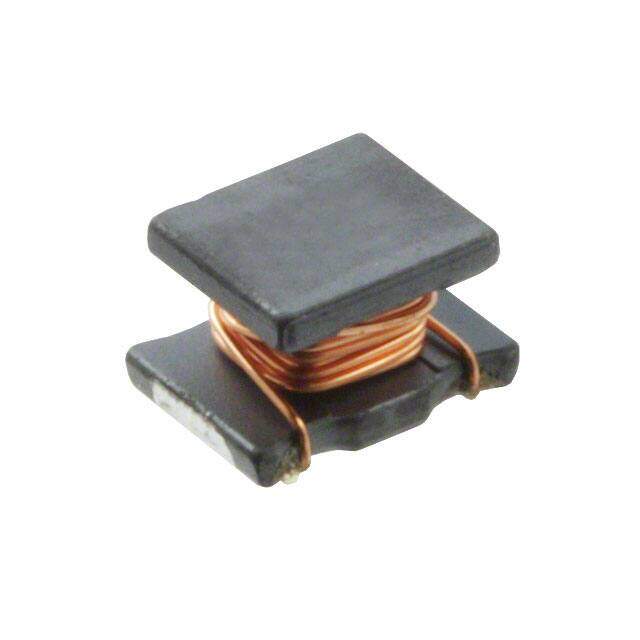

7440450056 image
Favorite
7440450056 image
Favorite

7440450056

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-LQ 1812 (4532Metric) 0.177Lx0.126W 4.50mmx3.20mm 5.6muH
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.67165
≥1 USD $0.67165
≥10 USD $0.551
≥100 USD $0.5339
≥500 USD $0.5168
≥1000 USD $0.4997
Inventory: 1079
Minimum: 1
-
+

Technical Details

Technical

Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.18A
Shielding Unshielded
Current Rating 1.18A
Case Code (Metric) 4532
Case Code (Imperial) 1812
Inductance 5.6μH
Test Frequency 1MHz
DC Resistance (DCR) 180mOhm Max
Max DC Current 1.18A
Frequency - Self Resonant 41MHz
Q @ Freq 36 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 1.9A
Q Factor 36
Inductance Tolerance 20%
RMS Current (Irms) 1.18A
Part Status Active
Tolerance ±20%
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Series WE-LQ
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Dimensions

Height 2.6mm
Height Seated (Max) 0.114 2.90mm
Length 4.4958mm
Width 4.5mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant

Physical

Material - Core Ferrite
Supplier Device Package 1812
Package / Case 1812 (4532 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
