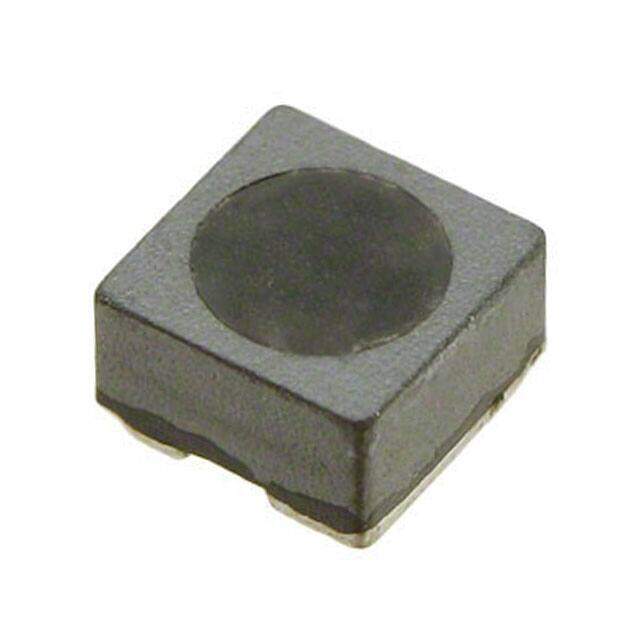

744043006 image
Favorite
744043006 image
Favorite
RoHS
RoHS RoHS compliant
Package 1919 (4848 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 6.8UH 1.3A 90 MOHM SMD
PDF
/
Buying Options
Total Price: USD $9.58
Unit Price: USD $9.5779
≥1 USD $9.5779
≥10 USD $7.85935
≥100 USD $7.6133
≥500 USD $7.3682
≥1000 USD $7.12215
Inventory: 1616
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mounting Type Surface Mount
Package / Case 1919 (4848 Metric)
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-TPC
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.3A
Shielding Shielded
Inductance 6.8μH
DC Resistance (DCR) 90mOhm Max
Frequency - Self Resonant 57MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.25A
Inductance Tolerance 30%

Dimensions

Height Seated (Max) 0.118 3.00mm

Compliance

RoHS Status ROHS3 Compliant
