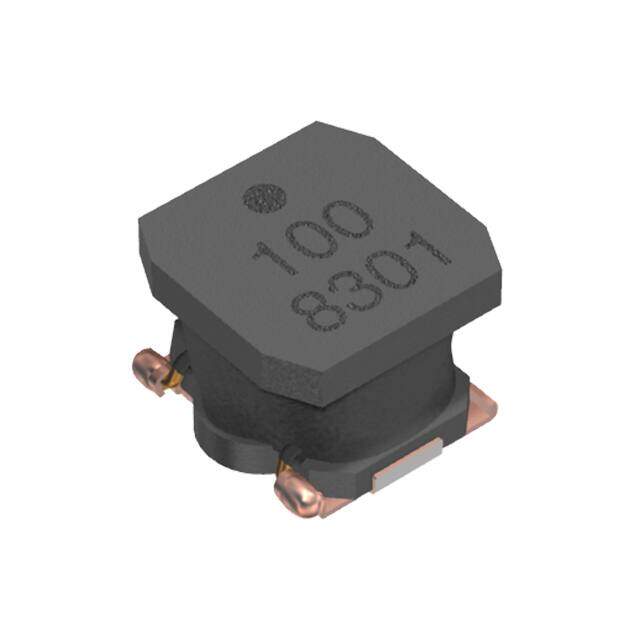

74404064100 image
Favorite
74404064100 image
Favorite

74404064100

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-LQS Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.963212
≥1 USD $0.963212
≥10 USD $0.908691
≥100 USD $0.857257
≥500 USD $0.80873
≥1000 USD $0.762956
Inventory: 1198
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 70 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 6045
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-LQS
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.45A
Shielding Shielded
Current Rating 2.45A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 48mOhm
Max DC Current 2.45A
Frequency - Self Resonant 22MHz
Inductance Frequency - Test 100kHz
Current - Saturation 3.5A
Inductance Tolerance 20%
RMS Current (Irms) 2.45A

Dimensions

Height 4.5mm
Height Seated (Max) 0.177 4.50mm
Length 5.9944mm
Width 5.9944mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
