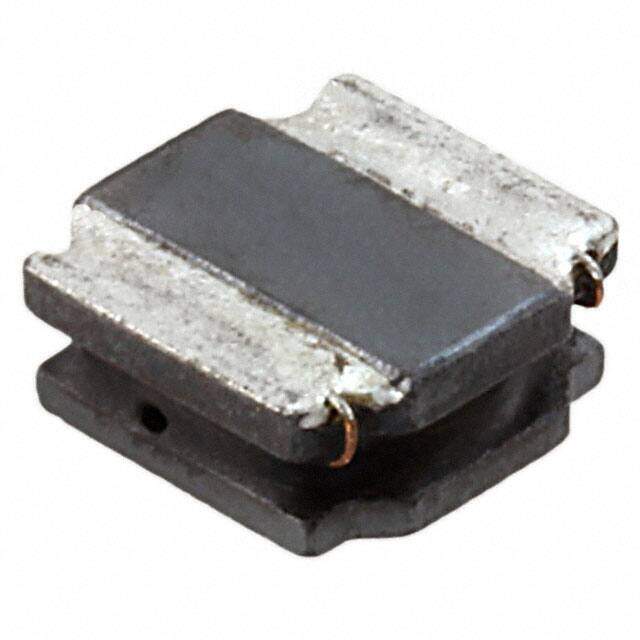

74404063330
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LQS Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 33muH
PDF
/
Inventory: 9996
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 5.9944mm
Length 5.9944mm
Height Seated (Max) 0.110 2.80mm
Height 2.8mm
Technical
RMS Current (Irms) 1.22A
Inductance Tolerance 20%
Current - Saturation 1.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 16MHz
Max DC Current 1.22A
DC Resistance (DCR) 185mOhm
Test Frequency 100kHz
Inductance 33μH
Current Rating 1.22A
Shielding Shielded
Current Rating (Amps) 1.22A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Series WE-LQS
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Supplier Device Package 6028
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 56 Weeks

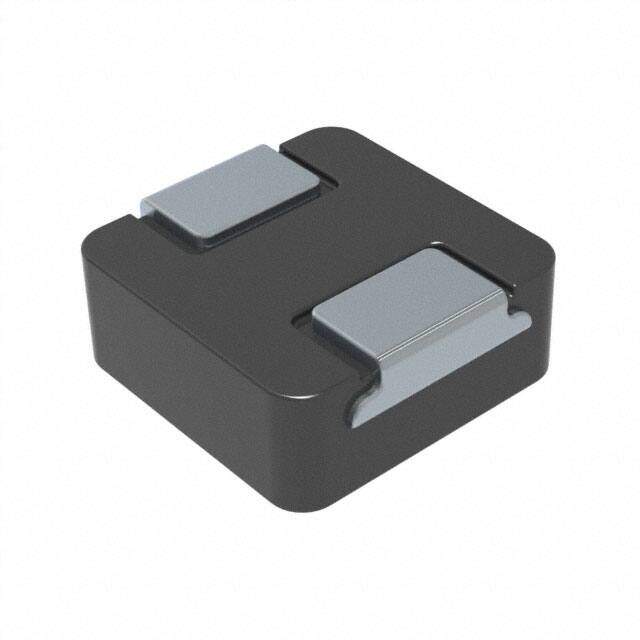

Alternative Model
