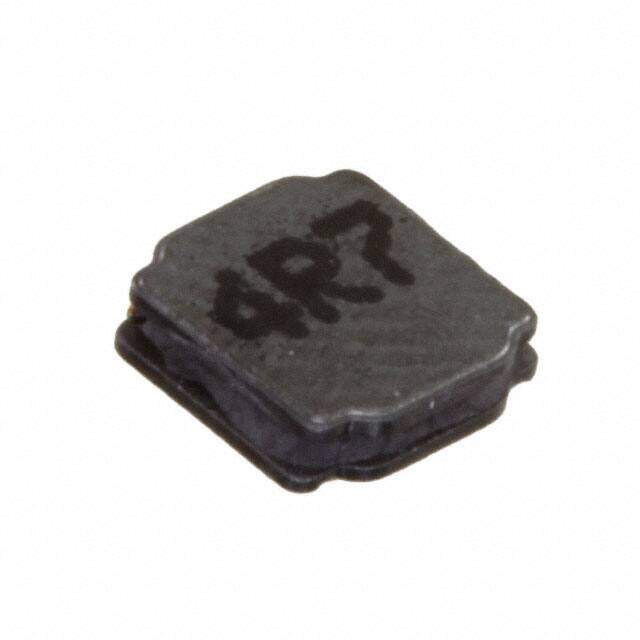

74404041047 image
Favorite
74404041047 image
Favorite

74404041047

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-LQS Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.78565
≥1 USD $0.78565
≥10 USD $0.64505
≥100 USD $0.6251
≥500 USD $0.6042
≥1000 USD $0.58425
Inventory: 47562
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LQS
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.55A
Shielding Shielded
Current Rating 1.55A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 91mOhm
Frequency - Self Resonant 55MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.9A
Inductance Tolerance 20%

Dimensions

Height Seated (Max) 0.047 1.20mm
Length 3.9878mm
Width 3.9878mm

Compliance

RoHS Status ROHS3 Compliant
