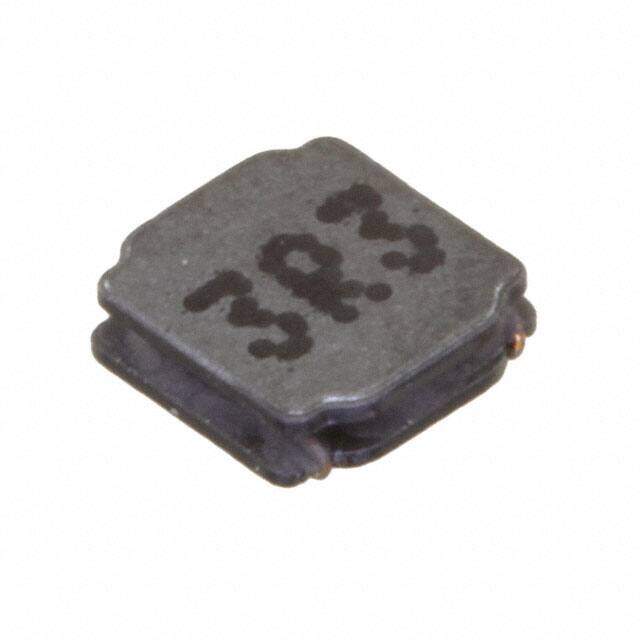

74404041033
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LQS Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 57
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-LQS
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.75A
Shielding Shielded
Current Rating 1.75A
Inductance 3.3μH
Test Frequency 100kHz
DC Resistance (DCR) 69mOhm
Frequency - Self Resonant 78MHz
Inductance Frequency - Test 100kHz
Current - Saturation 2.1A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.047 1.20mm
Length 3.9878mm
Width 3.9878mm
Compliance
RoHS Status ROHS3 Compliant
